Cortizo COR Vision Plus | Slimline Aluminium Sliding Doors

Home / Aluminium Doors / Aluminium Sliding Doors / Cortizo COR Vision Plus Sliding Door

Trusted manufacturers since 2000

Professional Installer Network

Quick Supply

Made in the UK

Exceptional Quality Control

Knowledgeable Family Run Business

Bespoke Complex Products Fabricated

The Cortizo COR Vision Plus Sliding door is a minimalistic sliding system specifically suitable for large dimensions and with its structurally bonded glass design, allows for the maximum luminosity with a minimum visible section of aluminium. Its extraordinary thickness capacity allows the placement of glass panes up to 54mm thickness, guaranteeing the best acoustic and thermal performance. This heavy duty version of our premium COR vision sliding door allows for triple glazing and larger size dimensions, while still providing almost as thin sightlines of 25mm.

U-value of 0.9 W/m²K
56mm maximum glazing thickness
Double and triple glazing options available
25mm Sightlines
Sliding of 2, 4, or 6 sashes, and up to 4 rail configurations
Possibility of corner sash encounters of 90 degrees without mullions
Maximum sash width of 4000mm and height of 4000mm for a single pane
Maximum sash weight of 400kg

Modern gable-end house with full-height slim-frame sliding glass doors and balcony.

Specification

Colours

Glass

Hardware

Brochure

Gallery

Specification

Maximum glazing thickness
56 mm
Opening possibilities
Sliding of 2, 4 & 6 sashes
Up to 4 rail configurations
1 sash + 1 fixed / 2 sashes + 1 fixed
Possibility of corner sash encounters at 90º without mullions
Pocket solution possibility 1,2,3, and 4 sashes

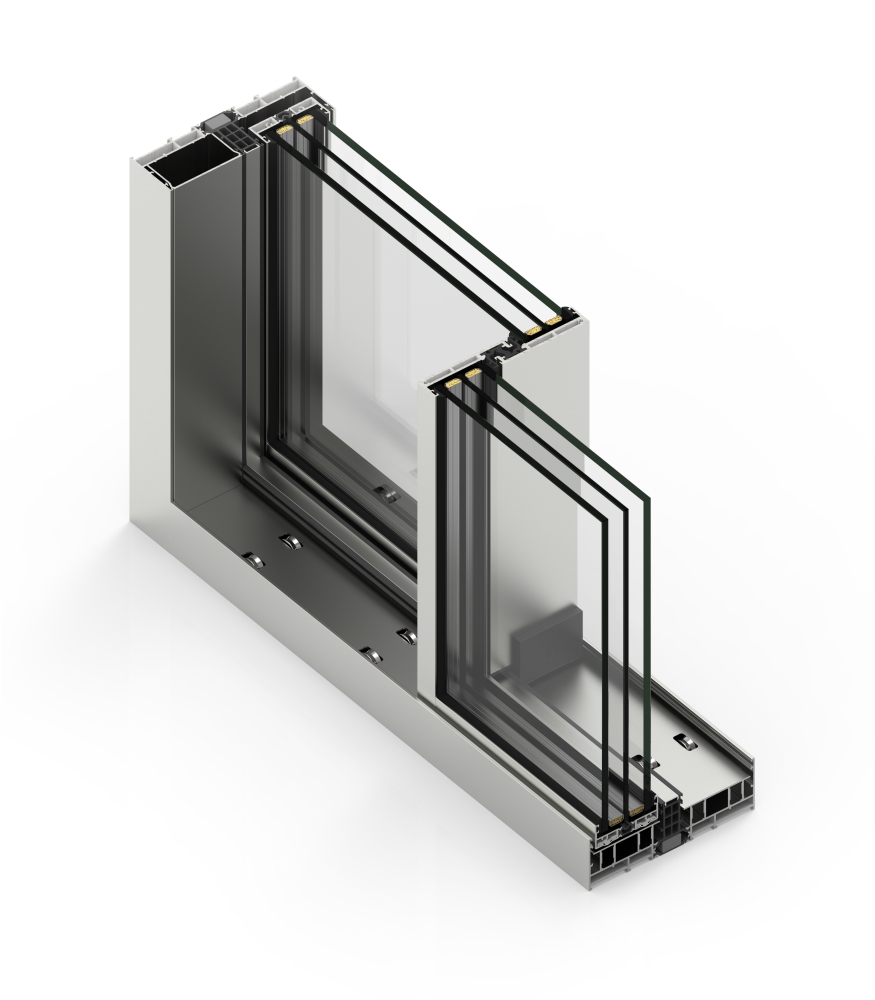

Sections
Frame 180 mm - 3 rails 278 mm
Sash 6 mm
Profile thickness
Door 2.0 mm
Polyamide strip length
Frame 40 mm / Sash 18/32 mm
Maximum dimensions/sash
Width (L) = 4000 mm
Height (H) = 4000 mm

Glass surface ≤ 14 m²
Maximum weight/sash
400 kg Manual
700 kg Motorised

Please consult regarding maximum weight and dimensions for other opening types

Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

Colours

White aluminium frame colour finish sample.

Matt white aluminium frame colour finish sample.

Matt brown aluminium frame colour finish sample.

Jet black aluminium frame colour finish sample

Grey aluminium frame colour finish sample.

Gloss white aluminium frame colour finish sample.

Gloss off white aluminium frame colour finish sample.

Dark red aluminium frame colour finish sample.

Dark grey aluminium frame colour finish sample.

Dark green aluminium frame colour finish sample.

Dark brown aluminium frame colour finish sample.

Dark blue aluminium frame colour finish sample.

Cream aluminium frame colour finish sample.

Black aluminium frame colour finish sample.

Anthracite grey aluminium frame colour finish sample.

Airforce grey aluminium frame colour finish sample.

Glass

Unglazed aluminium window frame with angled top.

Standard self-clean glass panel with clear finish.

Standard toughened glass panel with clear finish.

Clear solar control glass panel for improved comfort and energy efficiency.

Self-cleaning glass panel designed to break down dirt and reduce cleaning frequency.

Self Clean Solar Control panel combining dirt-repelling and heat-reducing technology.

Satin obscure glass panel with smooth frosted finish.

Laminated security glass panel with clear finish.

Hardware

White 9010

Light silver

Grey 7016

Dark silver

Custom ral

Black 9005

Brochure

COR Vision Plus Sliding

Gallery

Large slim-frame sliding glass doors opening a modern bedroom to the outdoors.

FAQs About Cortizo COR Vision Plus Sliding Doors at Direct Trade Windows

What makes the Cortizo COR Vision Plus unique?

It offers ultra-slim 25 mm sightlines for a sleek, modern look while maximising glass area for uninterrupted panoramic views.

What are the main visual differences between COR Vision and COR Vision Plus?

COR Vision has a slim 20 mm central sightline, while COR Vision Plus offers a slightly wider 25 mm sightline with an impressive 94% glass-to-frame ratio for a seamless appearance.

Is it energy-efficient?

Yes – it achieves Uw values from 0.9 W/m²K, providing excellent thermal insulation for year-round comfort.

Can it be customised to my design?

Absolutely. You can choose from a wide range of colours, dual-colour options, anodised finishes, and multiple track configurations.

What type of glass can it take?

It accommodates glazing up to 54 mm thick, allowing for double or triple-glazing for enhanced insulation and soundproofing.

Is it suitable for coastal or exposed locations?

Yes – the system is tested to Class 4 air permeability, Class E1200 water tightness, and Class C5 wind resistance for robust performance in harsh conditions.

How smooth is the sliding action?

The COR Vision Plus uses precision-engineered stainless steel rollers for effortless opening and closing, even with very large panels.

Can I have a corner opening without a post?

Yes – it offers a 90° corner configuration with no fixed corner post for uninterrupted transitions between indoor and outdoor spaces.

How large can the sliding panels be?

Each panel can be up to 4 metres wide and 4 metres high, allowing for expansive glazed openings.
